Modern Kitchen Design – Custom Cabinetry & Island Layout

Role

Interior Designer – Concept, Technical Drawings & 3D Visualization

Project type

Residential Kitchen Renovation

Scope of Work

Concept Design, Space Planning, Custom Cabinetry Design, Technical Drawings, 3D Visualization, Material Selection

Tools

AutoCAD, SketchUp, V-Ray, Adobe Photoshop

Location

Abu Dhabi, UAE (Remote / On-site collaboration)

This kitchen renovation focused on transforming an open-plan space into a highly functional and visually cohesive environment. The design introduces custom-built cabinetry, a built-in fridge and freezer system, and a central island integrating the sink, storage, and seating.

Material selections combine matte gray cabinetry, warm wood accents, and stone surfaces to balance modern aesthetics with warmth. The layout was carefully planned to optimize circulation between cooking, prep, and washing zones, while layered lighting enhances both task efficiency and ambient atmosphere.

Original apartment floor plan showing the existing kitchen and living area before renovation.

Open-plan kitchen and living area before adding the new partition wall during renovation.

Kitchen renovation showing newly added metal stud partition framing for layout reconfiguration.

Completed modern kitchen with dark cabinetry, integrated appliances, and a central island with seating and accent lighting.

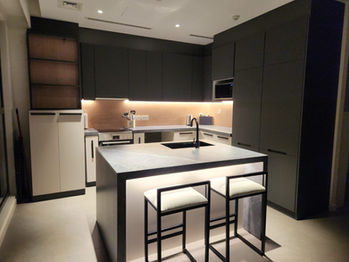

Completed modern kitchen with ambient and under-cabinet lighting, dark cabinetry, and a central island with seating.

Kitchen zoning and circulation diagram showing cooking, prep, sink, and island zones with clear movement paths.

Kitchen layout and cabinetry plans showing base cabinets, upper cabinets, and island dimensions.

Kitchen cabinetry section and elevation drawings with detailed dimensions and storage layouts.

Detailed drawing and 3D view of a kitchen cooler and garbage cabinet with integrated storage and material references.

Custom kitchen spice drawer cabinet with detailed drawings and 3D perspective showing internal storage layout.

Corner base kitchen cabinet with lazy Susan shown through technical drawings and 3D visualization.

Built-in fridge and freezer cabinet with integrated kitchen cabinetry, featuring a bottom freezer and upper refrigerator in a modern kitchen design.

Upper kitchen cabinet design with integrated ceiling edge detail and concealed appliances in a modern interior layout.

Custom kitchen island design with integrated sink, storage drawers, and stone cladding in a modern kitchen layout.

Kitchen material palette featuring grey stone, matte grey cabinetry, cashmere tones, and natural oak finishes.

Front view of a modern kitchen with island seating, integrated cabinets, full-height storage, and neutral finishes.

Interior view of a contemporary kitchen showing sink island, prep zones, integrated storage, and layered lighting.

Angled view of a modern kitchen with gray cabinetry, wood backsplash, stone island countertop, integrated appliances, and pendant lighting.

Hero view of a modern kitchen with gray cabinetry, wood backsplash, stone island with sink, integrated appliances, and pendant lighting.
